LINE INTERACTIVE UPS

OVERVIEW | DATA SHEETS

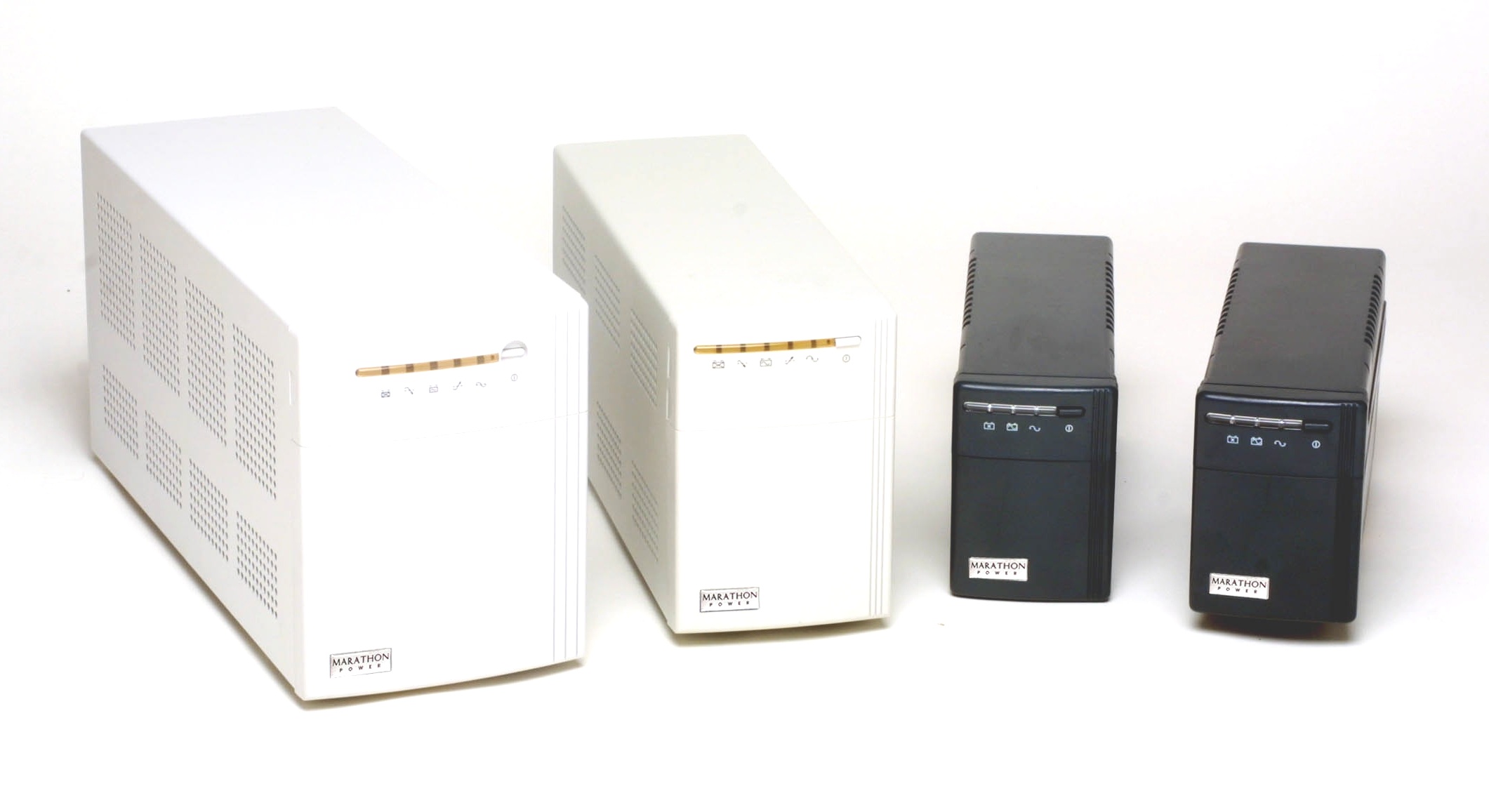

SPRINT SERIES

Compact, reliable battery backup with AVR. Ideal for general commercial and industrial applications.



OVERVIEW

Line-interactive technology includes Automatic Voltage Regulation, which provides mitigation of sags and swells without relying on backup battery power. This conserves battery energy for more severe disturbances such as power interruptions and outages, thereby extending the life of the unit.

All models come with a power monitoring & UPS-control soft- ware kit at no additional cost. The unique energy saving “Sleep Mode” reduces the cost of ownership and the “Cold Start” feature allows the UPS to be used as a small emergency power source.

A variety of programmable alarms and indicators provide users with information on system status. There is also AC and communication line surge protection as well as dry contacts via a standard RS-232 DB-9 connection that allow for remote signaling of basic functions such as Power Normal, Backup Mode & Low Battery states as well as remote shutdown of the unit.

They are ideal for general commercial and industrial applications and are available in Tower and 19″ Rack Mount configurations.


APPLICATIONS

  • Financial & Banking

  • Information Technology

  • Lighting & Commercial Control

  • Telephony

  • Computers

  • Home

FEATURES & BENEFITS

  • Line-interactive technology

  • Automatic Voltage Regulation

  • Dry-relay-contact signaling

  • AC and data-line surge protection

  • “Cold Start” DC power-up

  • 50/60Hz frequency auto-sensing

  • User-replaceable “hot-swappable” batteries

  • Digital battery management

  • Auto self-test mode

  • Overload and short-circuit protection

  • Visual indicators and programmable alarms

  • Site wiring fault indicator


DOCUMENTS







Agency Standards, Certifications & Compliance

Most of our standard products are certified to the latest edition UL and CSA standards for the 120V models and CE (both LVD and EMC) standards for the 230V models. However, some models have both UL/CSA as well as CE certifications based on customer and/or application demand. Given our focus on customization, the extent of which often voids any preexisting certifications, we work with our local Nationally Recognized Test Laboratories (NRTL’s) to have any model tested and certified to any standard as required. Please contact us for specifics details pertaining to the certification/s of a particular model.
