LINE INTERACTIVE UPs WITH TRUE SINE WAVE

OVERVIEW | DATA SHEETS

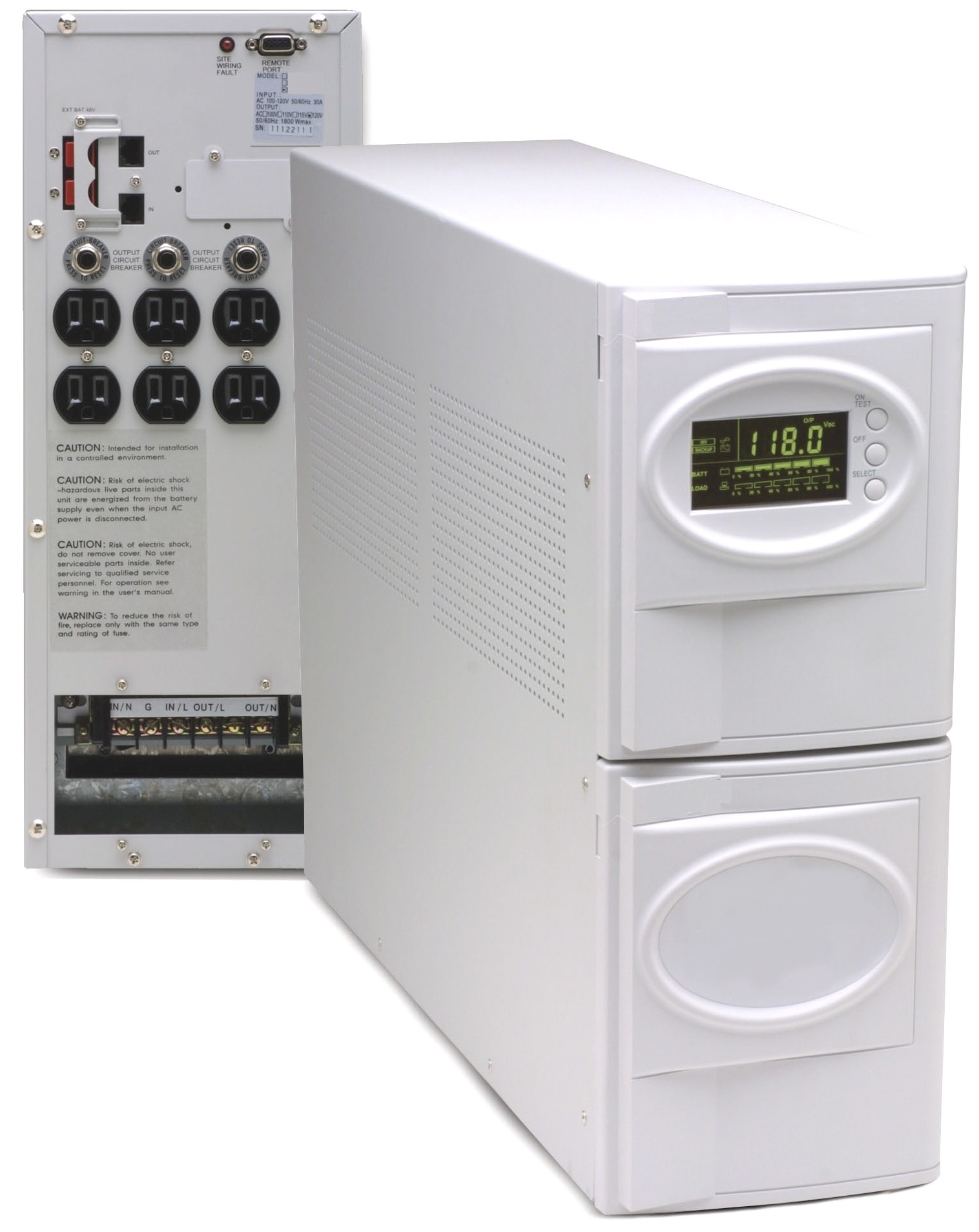

Marathon Power Track Series.jpg

TRACK SERIES

Versatile, efficient and customizable with AVR. Ideal for critical applications requiring true sine wave output with the efficiency of a line-interactive design.



OVERVIEW

Marathon Power’s Track models are ideal for more critical applications requiring true sine wave output while in backup mode along with the efficiency of a line-interactive design. Automatic Voltage Regulation provides mitigation of sags and swells without relying on backup battery power. This conserves battery energy for more severe disturbances such as power interruptions and outages.

Tight voltage and frequency regulation along with fast transfer to backup power ensure seamless transmission of uninterrupted power to the load. All models come with power-monitoring & UPS-control software at no additional cost. The unique energy saving “Sleep Mode” reduces the cost of ownership and the “Cold Start” feature allows the UPS to be used as a small emergency power source.

A variety of programmable alarms and indicators provide users with information on system status as well as AC and communication line surge protection. Also unique is remote control and signaling of basic functions such as Power Normal, Backup Mode & Low Battery states as well as remote shutdown, via a standard RS-232 connection.

An option on most models is a user-friendly, multi-function LCD display that provides information on a variety of parameter settings as well as overall UPS system status. Larger models include hardwire input and output connectivity making them ideal for industrial, medical and telecom applications. Also available are extended backup time versions using external battery packs.


FEATURES & BENEFITS

  • Line-interactive topology with true sinewave output

  • Hard-wire input/output connection (3000VA models)

  • Automatic Voltage Regulation

  • Dry-relay or solid-state contact signaling

  • Power monitoring & UPS control software

  • Energy-saving “Sleep” mode

  • AC and data-line surge protection

  • ”Cold Start” DC power-up

  • Digital battery management

  • Auto self-test mode

  • User-replaceable “hot-swappable” batteries

  • 50/60Hz frequency auto-sensing

  • Overload and short-circuit protection

  • SNMP capable (network manageable)

  • Site wiring fault indicator



APPLICATIONS

  • Industrial Automation

  • Process & Motion Control

  • OEM (Original Equipment Manufacturer)

  • Security

  • Information Technology

  • Telephony

  • Computers

  • Home Automation


DOCUMENTS







Agency Standards, Certifications & Compliance

Most of our standard products are certified to the latest edition UL and CSA standards for the 120V models and CE (both LVD and EMC) standards for the 230V models. However, some models have both UL/CSA as well as CE certifications based on customer and/or application demand. Given our focus on customization, the extent of which often voids any preexisting certifications, we work with our local Nationally Recognized Test Laboratories (NRTL’s) to have any model tested and certified to any standard as required. Please contact us for specifics details pertaining to the certification/s of a particular model.
