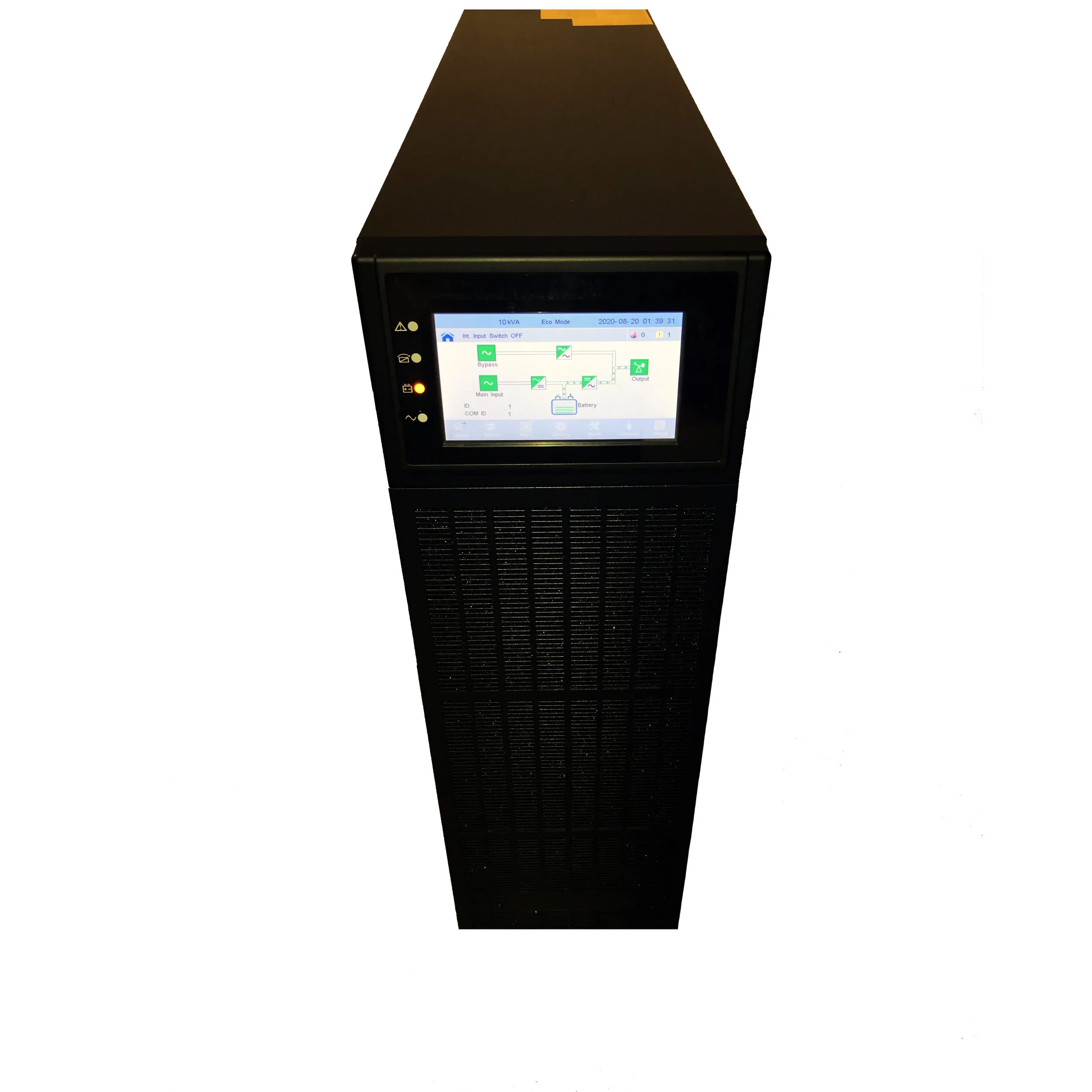

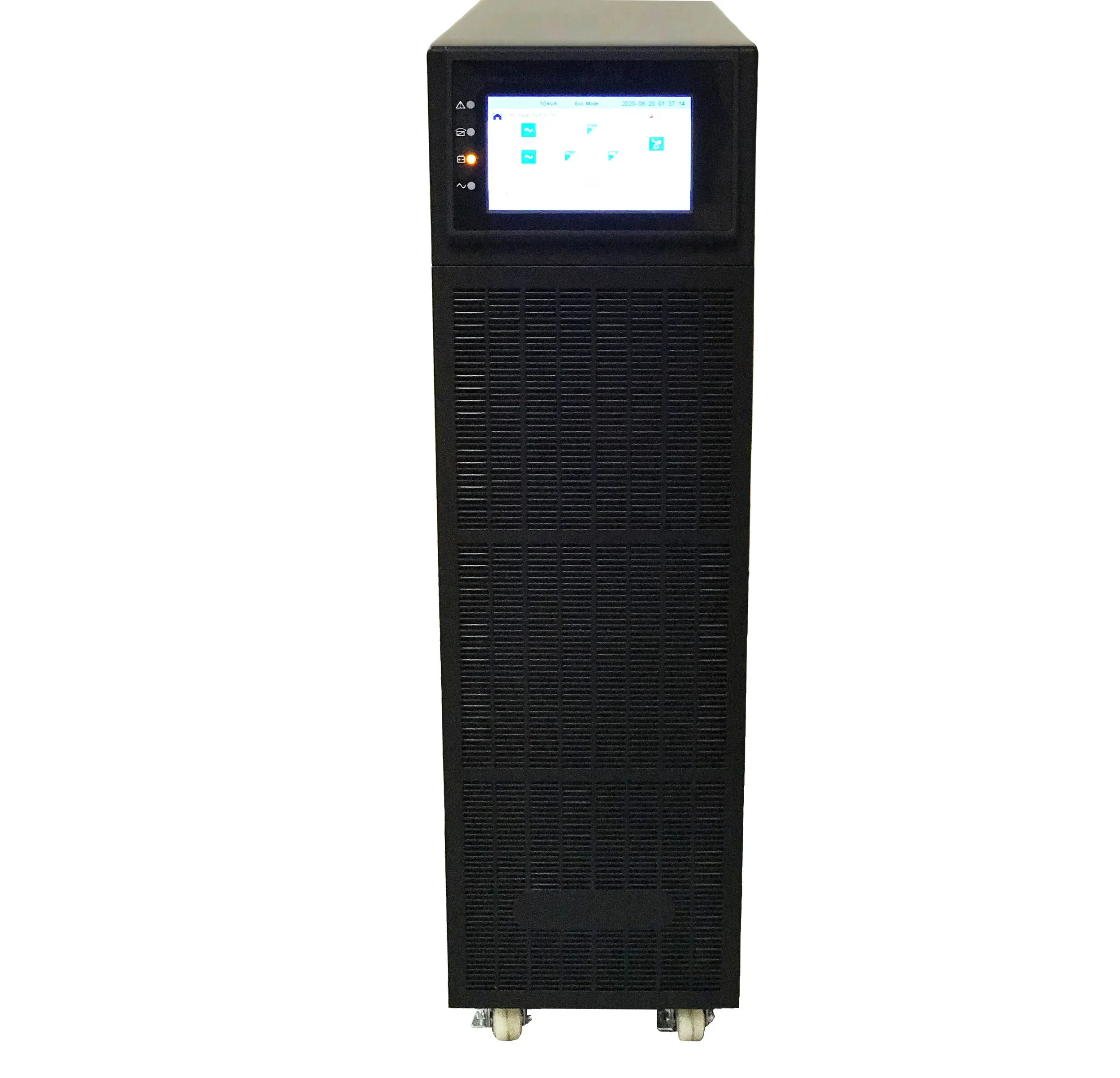

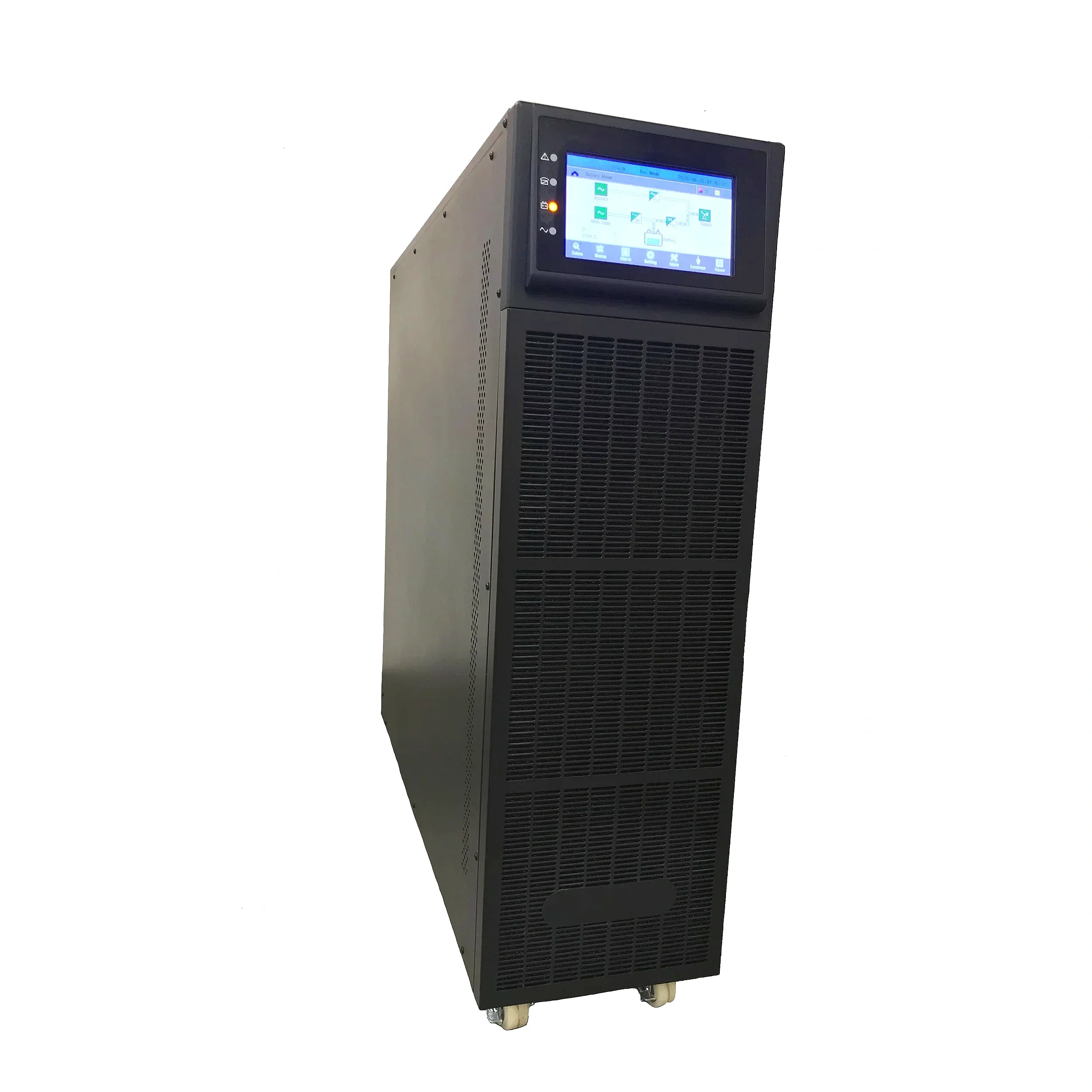

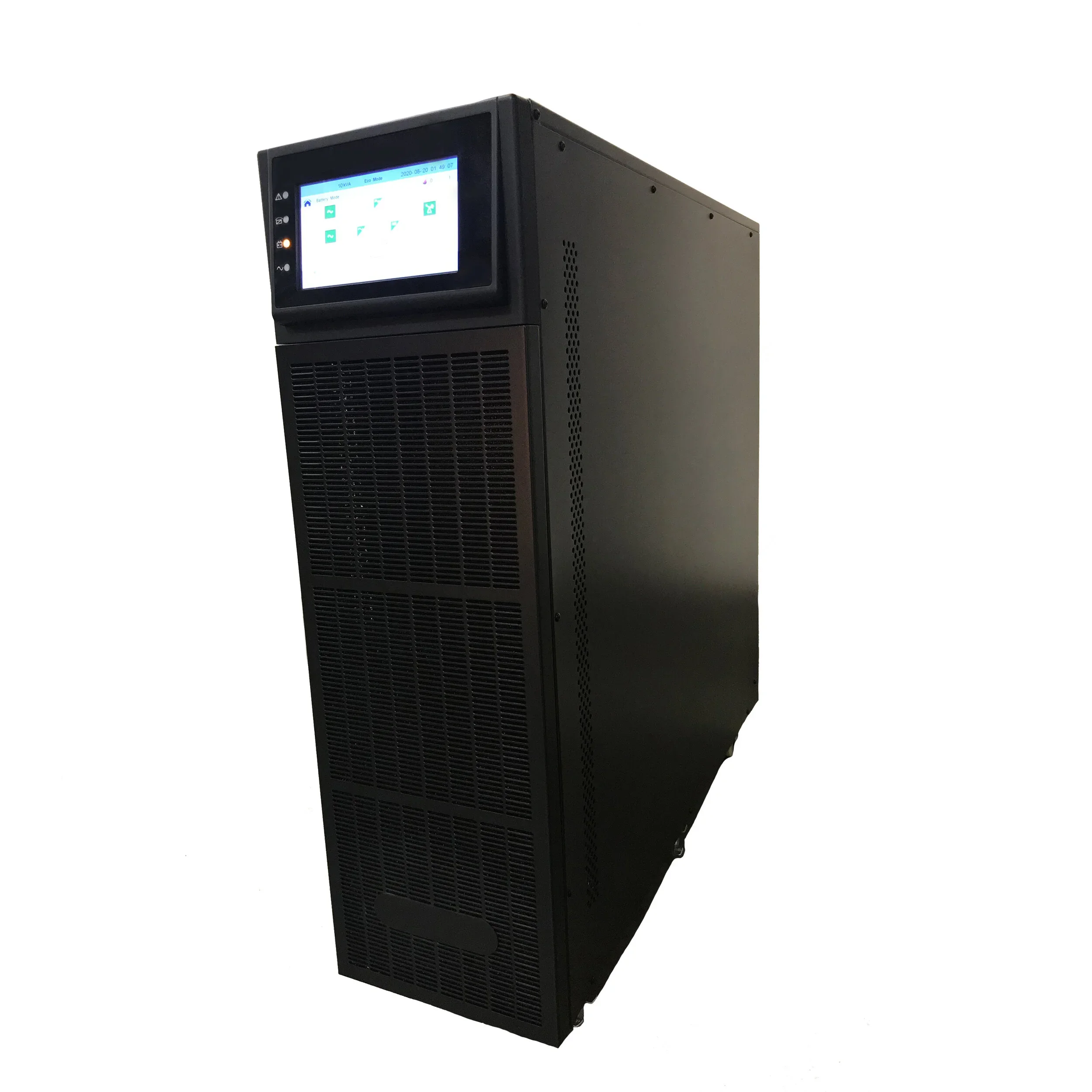

Tri-Athlon 3-Phase UPS

Topology: Parallel Redundant Online UPS
Power Rating: 10kVA • 15kVA • 20kVA
Input Connection: Hardwire Terminals

Product Overview

The Marathon Power Tri-Athlon is a parallel redundant online UPS featuring one of the smallest cabinet footprints in the industry. It is compliant with the latest industry standards and available with a variety of options in various configurations. Two versions are available; one with internal batteries and one without internal batteries but a larger internal charger for large external battery banks. There is an internal maintenance bypass switch and hardwire input / output connectivity. All this in an affordable, reliable, compact package.

Key Features

  • Parallel Redundancy up to 4 units
  • Wide Input Voltage and Frequency Tolerance
  • Unity Power Factor and Low Input Distortion
  • ECO Mode for Energy Saving
  • Front Panel Color Monitor

Applications

  • Industrial
  • Process Control
  • IT and Data Centers
  • Medical
  • Telecom
  • Banking
  • Security

Tri-Athlon 3-Phase UPS, 208V/120V, Tower, Listed to UL 1778, Internal Batteries, Maintenance Bypass

Model Input / Output Connections Battery Weight lbs / kg Dimensions mm / in
ATWS-10003-02 Hardwire Terminals 20 × 12V/9Ah 299.8 lbs / 136 kg 250 × 868 × 900 / 9.8 × 34.2 × 35.4
ATWS-15003-02 Hardwire Terminals 40 × 12V/9Ah 414.5 lbs / 188 kg 250 × 868 × 900 / 9.8 × 34.2 × 35.4
ATWS-20003-02 Hardwire Terminals 60 × 12V/9Ah 526.9 lbs / 239 kg 250 × 868 × 900 / 9.8 × 34.2 × 35.4

Tri-Athlon 3-Phase UPS, 208V/120V, Tower, Listed to UL1778, NO Internal Batteries, Maintenance Bypass

Model Input / Output Connections Weight kg / lbs Dimensions mm / in
ATWN-10003-02 Hardwire Terminals 77 kg / 169.8 lbs 250 × 868 × 900 / 9.8 × 34.2 × 35.4
ATWN-15003-02 Hardwire Terminals 78 kg / 172.0 lbs 250 × 868 × 900 / 9.8 × 34.2 × 35.4
ATWN-20003-02 Hardwire Terminals 79 kg / 174.2 lbs 250 × 868 × 900 / 9.8 × 34.2 × 35.4

External Battery Packs for Tri-Athlon 3-Phase UPS

Model Battery Details Weight kg / lbs Dimensions mm / in
ABPT-4207-120 Eighty (80) 7Ah batteries 260kg / 573.2lbs 250 × 868 × 900 / 9.8 × 34.2 × 35.4
ABPT-4209-120 Eighty (80) 9Ah batteries 261kg / 575.4lbs 250 × 868 × 900 / 9.8 × 34.2 × 35.4
