Product Overview & Certification
The Ruggedized Vault Rackmount UPS is a true on-line, double-conversion design with power factor correction. Ideal for the most critical and sensitive applications where the best level of power protection is required in harsh environments. Connected equipment is immune to the slightest power fluctuations, spikes, surges, noise, extended under and over voltages, harmonics and frequency variations.
Key Features
- Wide operating temperature range
- Multi-function, four-line LCD control panel
- True sine-wave output with less than 3% THD
- Output voltage regulation to within +/- 2%
- High Efficiency (HE) & Free-run mode
- Input PF correction, frequency & bypass mode
- "Cold Start"+ 'Gen Set compatibility' mode
Applications
- Traffic Enclosures
- Custom Pedestals
- Industrial Control Panels
- Extreme Temperature Environments
VTRN Model Specifications
| Model | Capacity | Input Plug | Input Current | Output Connection | Dimensions W x D x H (in/mm) | Weight (lbs/kgs) |
|---|---|---|---|---|---|---|
| VTRN-0700-C1 | 700VA • 450W | Fixed power cord (std) or Hardwire Terminals (optional) | 5.8A | 6 x NEMA 5-15R (std) or Hardwire Terminals (optional) | 6 x 16.5 x 9.4 / 152 x 420 x 238 | 17 / 7.7 |
| VTRN-1000-C1 | 1000VA • 700W | Fixed power cord (std) or Hardwire Terminals (optional) | 8.2A | 6 x NEMA 5-15R (std) or Hardwire Terminals (optional) | 6 x 16.5 x 9.4 / 152 x 420 x 238 | 19 / 8.6 | VTRN-1500-C1 | 1500VA • 1050W | Fixed power cord (std) or Hardwire Terminals (optional) | 8.2A | 6 x NEMA 5-15R (std) or Hardwire Terminals (optional) | 6 x 16.5 x 9.4 / 152 x 420 x 238 | 19 / 8.6 |

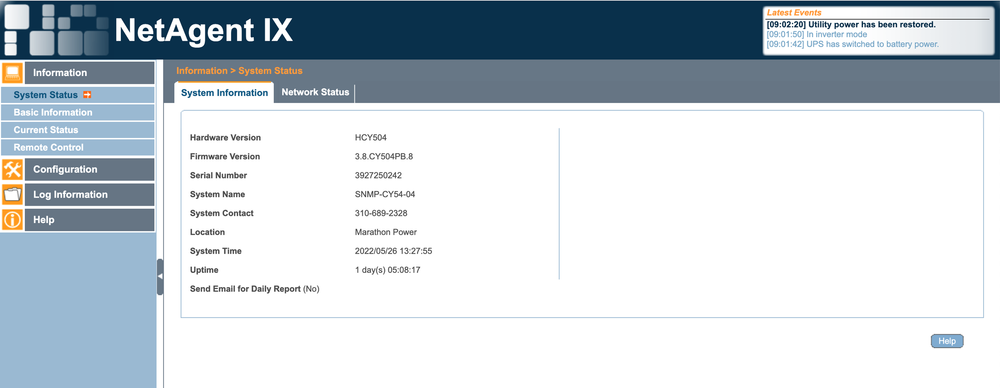

SNMP-CY54-03 Live Demo
SNMP Card Installation Video
See your Marathon Power representative for username and password.
Downloads
-
-
-
-
-
-
Important Battery Note
Batteries are not included with our Ruggedized models. There are NO internal batteries since there is no space inside our Ruggedized UPSs for wide temp batteries. Batteries can be purchased independently or with UPS as a separate line item.
