Product Overview & Certifications
Marathon Power proudly offers a specialized Uninterruptible Power Supply designed specifically for the elevator and escalator market. This unit comes in a compact enclosure that fits seamlessly into most control panels and requires no additional cooling, making installation simple and efficient. In addition to providing backup during power outages, the line-interactive design also corrects minor sags and swells in incoming power without switching to battery, ensuring smooth and consistent performance for your elevator and escalator systems.
Key Features
- Compact Enclosure
- Robust Internal Components
- Plug and Play Connectivity
- Multi-function LED Display
- Detachable Input Power Cord
- Five IEC Output Receptacles
Applications
- Elevator & Escalator Market
- Industrial
- Computers
×
![Model Image]()

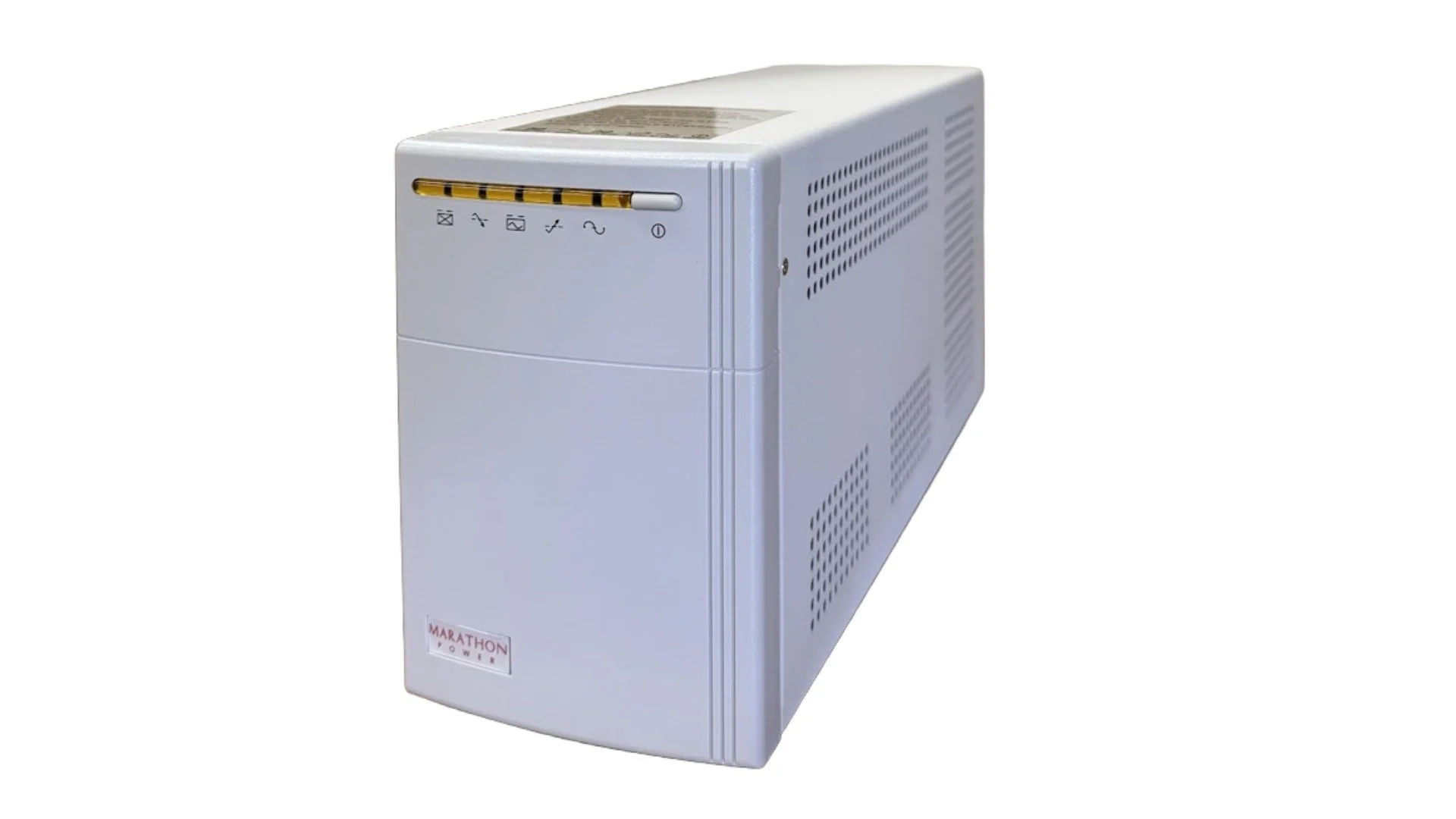

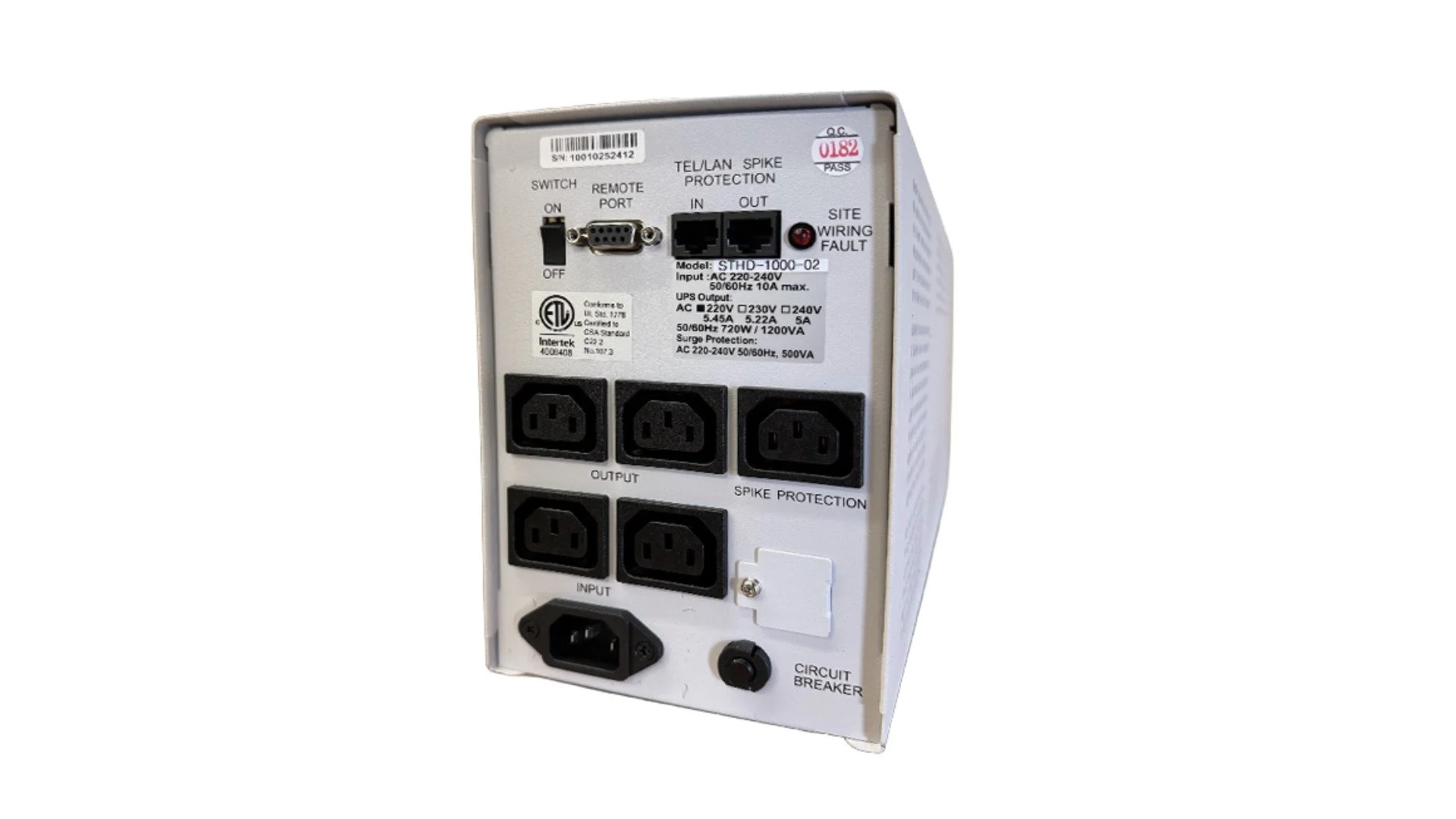

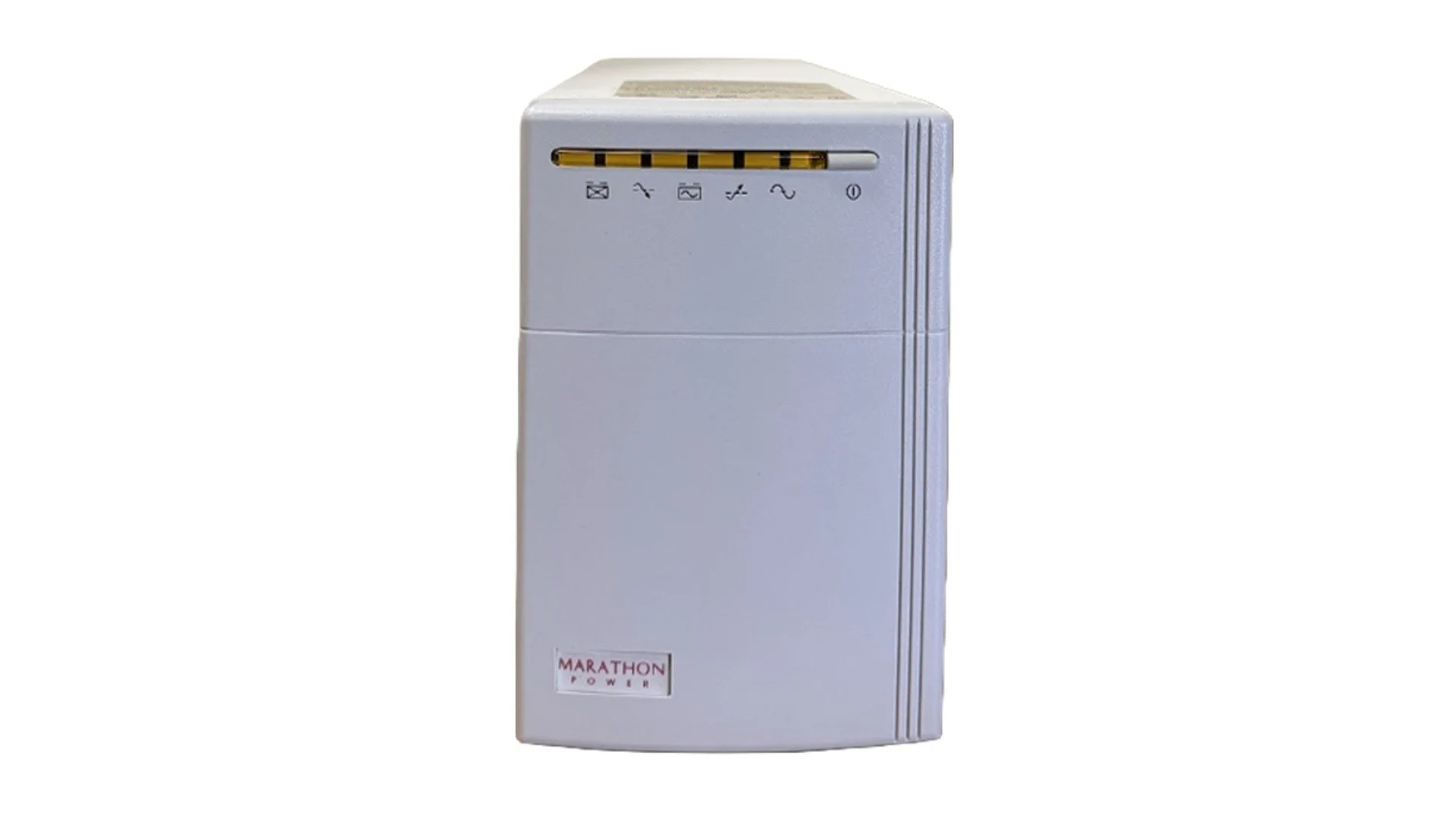

STHD Model Specifications
| Model | Capacity | Input Plug | Dimensions W x D x H (in/mm) | Weight (lbs/kgs) |
|---|---|---|---|---|
| STHD-1000-02 | 1000VA • 720W | IEC 60320 C14, with Detachable Input Power Cord | 5.1 x 15 x 7.9 / 130 x 382 x 200 | 34.1 / 15.5 |
×
Battery Specifications
| Model | Battery Type & Rating | Battery Quantity |
|---|---|---|
| STHD-1000-02 | Sealed, lead acid 7.2Ah/12V (36W) | 2 |

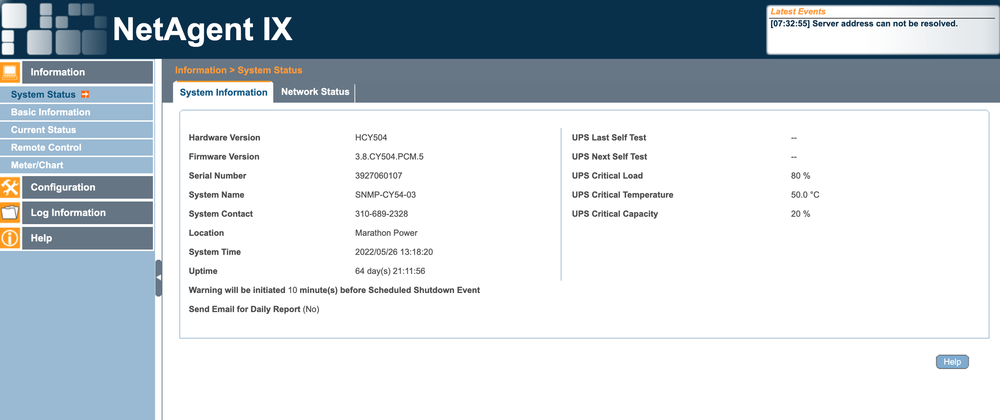

SNMP-CY54-03 Live Demo
See your Marathon Power representative for username and password.
