Vault High Power Series 120V Rackmount UPS

$0.00

Topology: True on-line, double conversion with integral automatic bypass
Power Rating: 1kVA - 3kVA
Input Connection: 6' Power Cord

Product Overview & Certifications

The Vault High Power series is our latest, state-of-the art UPS featuring true on-line, double-conversion technology with a 0.9 output power factor. These new units provide more real-power to the most critical and sensitive applications where the best level of power protection is required. Connected equipment is not only immune to even the slightest power fluctuations, but is also protected from other power anomalies such as spikes, surges, noise, extended under-and over-voltages, harmonics and frequency variations.

CE conformity mark — Various (based on model)

UL certification mark — UL Certified #E316102

    Key Features
    High Output Power Factor – 0.9 PF
True on-line, double conversion topology
Sine-wave output with less than 2.5% THD
EPO (Emergency Power Off) port
High Efficiency (HE) and Free-Run Mode
“Cold Start” power-up and gen-set compatibility mode
Multi-function, interactive control panel & LCD display



    Applications
    Medical & Imaging*
Industrial Automation
Process & Motion Control
Laboratory, Test & Measurement
OEM Equipment
Communications & Guidance
Security & Safety



VRTP Model Specifications

Model	Capacity	Input Plug	Input Current	Output Connection	Dimensions W x D x H (in/mm)	Weight (lbs/kgs)

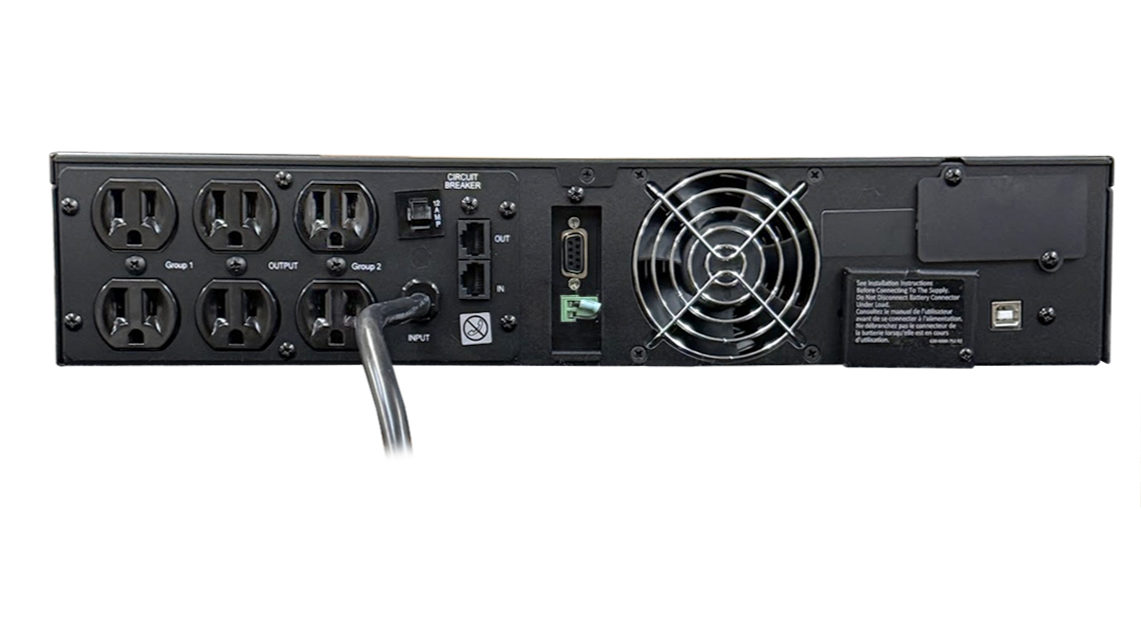

VRTP-1000-01	1000VA • 900W	6' Power Cord NEMA 5-15P	8.6A	6 x NEMA 5-15R	16.9 x 16.7 x 3.3 / 429 x 425 x 84	33.5 / 15.2
VRTP-1500-01	1500VA • 1350W	6' Power Cord NEMA 5-15P	13.2A	6 x NEMA 5-15R	16.9 x 19.7 x 3.3 / 429 x 500 x 84	45.8 / 20.8

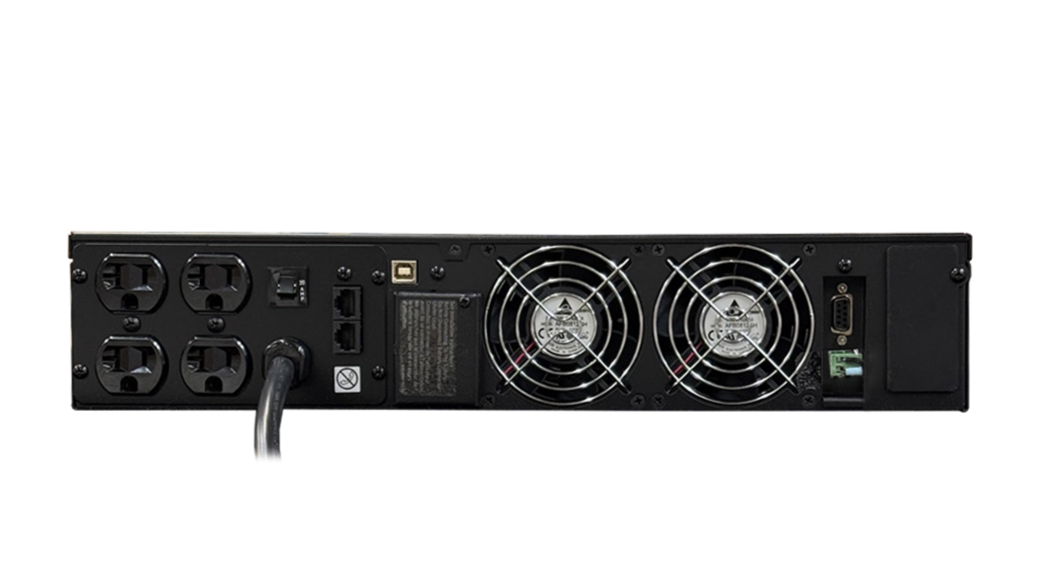

VRTP-2000-01	2000VA • 1800W	6' Power Cord NEMA 5-20P	17.6A	12 x NEMA 5-20R OR 10 x NEMA 5-20R + 1 x NEMA L5-20R	16.9 x 25 x 3.3 / 429 x 635 x 84	63.8 / 29
VRTP-3000-01	3000VA • 2700W	NEMA L5-30P	26.4A	12 x NEMA 5-20R OR 10 x NEMA 5-20R + 1 x NEMA L5-30R	16.9 x 25 x 3.3/ 429 x 635 x 84	63.8 / 29

Battery Specifications

Model	Battery Type & Rating	Internal Battery Cartridge	Internal Battery Cartridge Quantity
VRTP-1000-01	Sealed, lead acid 7.2Ah/12V (36W)	VRBC-1000-36	3
VRTP-1500-01	Sealed, lead acid 9Ah/12V (45W)	VRBC-1500-48	4
VRTP-2000-01	Sealed, lead acid 7.2Ah/12V (36W)	VRBC-2000-72	4
VRTP-3000-01	Sealed, lead acid 9Ah/12V (45W)	VRBC-3000-72	6
