Vault High Power Series 120V Tower UPS

$0.00

Topology: True on-line, double conversion with integral automatic bypass
Power Rating: 1kVA - 3kVA
Input Connection: 6' Power Cord

Product Overview & Certifications

CE conformity mark — Various (based on model)

UL certification mark — UL Certified #E316102

The Vault High Power series is our latest, state-of-the art UPS featuring true on-line, double-conversion technology with a 0.9 output power factor. These new units provide more real-power to the most critical and sensitive applications where the best level of power protection is required. Connected equipment is not only immune to even the slightest power fluctuations, but is also protected from other power anomalies such as spikes, surges, noise, extended under-and over-voltages, harmonics and frequency variations.

    Key Features
    High Output Power Factor – 0.9 PF
True on-line, double conversion topology
Sine-wave output with less than 2.5% THD
EPO (Emergency Power Off) port
High Efficiency (HE) and Free-Run Mode
“Cold Start” power-up and gen-set compatibility mode
Multi-function, interactive control panel & LCD display



    Applications
    Medical & Imaging*
Industrial Automation
Process & Motion Control
Laboratory, Test & Measurement
OEM Equipment
Communications & Guidance
Security & Safety



VTWP Model Specifications

Model	Capacity	Input Plug	Input Current	Output Connection	Dimensions W x D x H (in/mm)	Weight (lbs/kgs)

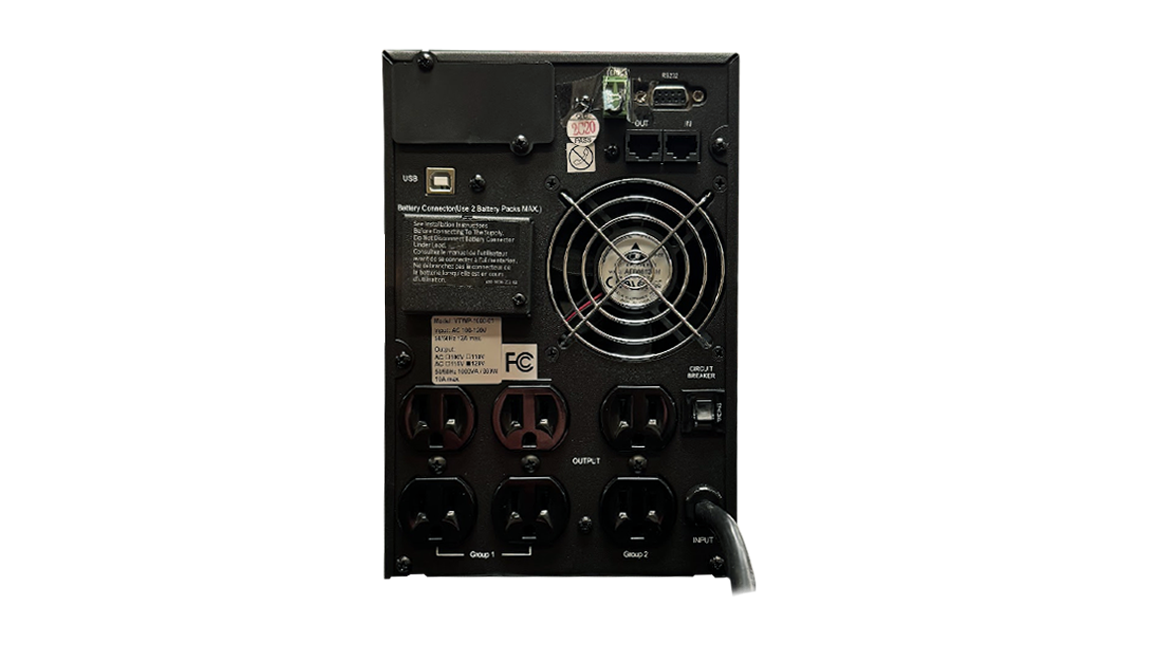

VTWP-1000-01	1000VA • 900W	NEMA 5-15P	8.6A	6 x NEMA 5-15R	6 x 16.5 x 9.4 / 152 x 420 x 239	29.7 / 13.5
VTWP-1500-01	1500VA • 1350W	NEMA 5-15P	13.2A	6 x NEMA 5-15R	6 x 19.7 x 9.4 / 152 x 500 x 239	40.3 / 18.3
VTWP-2000-01	2000VA • 1800W	NEMA 5-20P	17.6A	12 x NEMA 5-20R OR 10 x NEMA 5-20R + 1 x NEMA L5-20R	8.9 x 16.5 x 14.1 / 226 x 420 x 358	58.3 / 26.5
VTWP-3000-01	3000VA • 2700W	NEMA L5-30P	26.4A	12 x NEMA 5-20R OR 10 x NEMA 5-20R + 1 x NEMA L5-30R	8.9 x 16.5 x 14.1 / 226 x 420 x 358	69.3 / 31.5

Battery Specifications

Model	Battery Type & Rating	Internal Battery Cartridge	Internal Battery Cartridge Quantity
VTWP-1000-01	Sealed, lead acid 7.2Ah/12V (36W)	VTBC-1000-36	3
VTWP-1500-01	Sealed, lead acid 9Ah/12V (45W)	VTBC-1500-48	4
VTWP-2000-01	Sealed, lead acid 7.2Ah/12V (36W)	VTBC-1000-36	6
VTWP-3000-01	Sealed, lead acid 9Ah/12V (45W)	VTBC-1500-48	8
