Product Overview & Certifications
The Vault High Power series is our latest, state-of-the art UPS featuring true on-line, double-conversion technology with a 0.9 output power factor. These new units provide more real-power to the most critical and sensitive applications where the best level of power protection is required. Connected equipment is not only immune to even the slightest power fluctuations, but is also protected from other power anomalies such as spikes, surges, noise, extended under-and over-voltages, harmonics and frequency variations.
Key Features
- High Output Power Factor – 0.9 PF
- True on-line, double conversion topology
- Sine-wave output with less than 2.5% THD
- EPO (Emergency Power Off) port
- High Efficiency (HE) and Free-Run Mode
- “Cold Start” power-up and gen-set compatibility mode
- Multi-function, interactive control panel & LCD display
Applications
- Medical & Imaging*
- Industrial Automation
- Process & Motion Control
- Laboratory, Test & Measurement
- OEM Equipment
- Communications & Guidance
- Security & Safety
SNMP-CY54-03 Live Demo
See your Marathon Power representative for username and password.
SNMP Card Installation Video
SNMP Card Installation
Installation Videos
Vault Tower Battery Cartridge Removal
Vault Tower Battery Cartridge Installation
Rackmount Battery Cartridge Removal
Rackmount Battery Cartridge Installation
×
![Model Image]()
VTWP Model Specifications
| Model | Capacity | Input Plug | Input Current | Output Connection | Dimensions W x D x H (in/mm) | Weight (lbs/kgs) |
|---|---|---|---|---|---|---|
| VTWP-1000-02 | 1000VA • 900W | 6' Power Cord IEC C14 (10A) Recessed socket | 4.7A | 4 x IEC 320(10A) | 6 x 16.5 x 9.4 / 152 x 420 x 239 | 29.7 / 13.5 |
| VTWP-1500-02 | 1500VA • 1350W | 6' Power Cord IEC C14 (10A) Recessed socket | 7A | 4 x IEC 320(10A) | 6 x 19.7 x 9.4 / 152 x 500 x 239 | 40.3 / 18.3 |
| VTWP-2000-02 | 2000VA • 1800W | 6' Power Cord IEC C14 (10A) Recessed socket | 9.4A | 8 x IEC C13(10A) 1 x IEC C19(16A) | 8.9 x 16.5 x 14.1 / 226 x 420 x 358 | 58.3 / 26.5 |

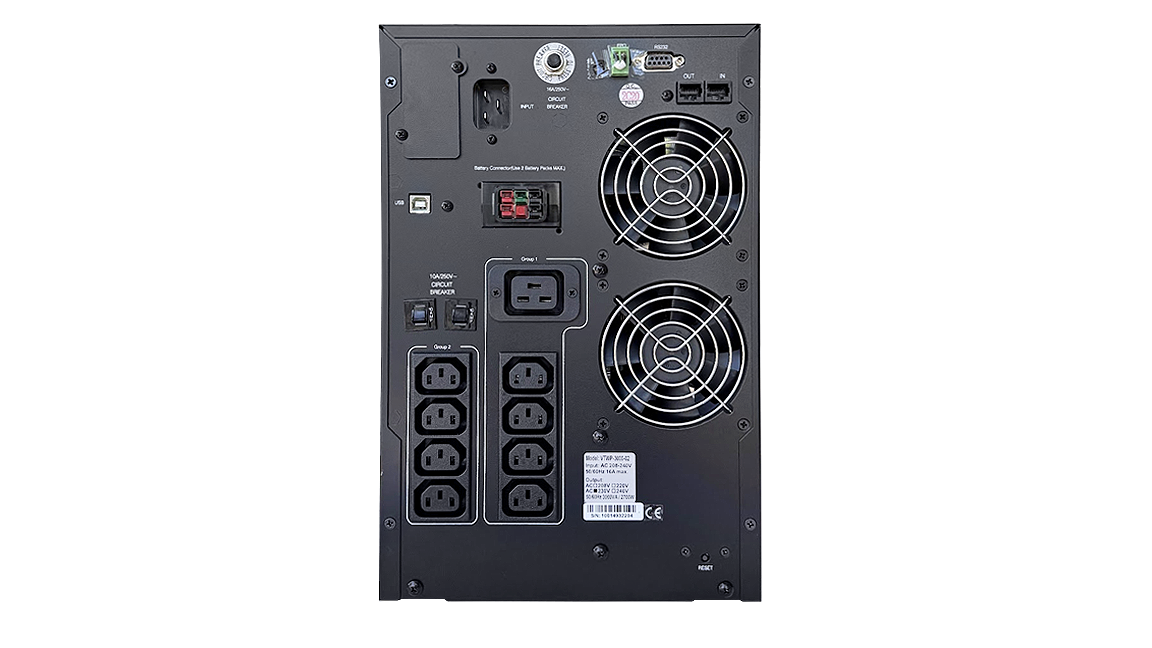

| VTWP-3000-02 | 3000VA • 2700W | 6' Power Cord IEC C20 (16A) Recessed socket | 14.1A | 8 x IEC C13(10A) 1 x IEC C19(16A) | 8.9 x 16.5 x 14.1 / 226 x 420 x 358 | 69.3 / 31.5 | VTWP-6000-02 | 6000VA • 5400W | Hardwire Terminals | 28.9A | 6-Position Terminal Blocks, 57A, Bolt Size: M5 | 10.2 x 23.2 x 22.5/ 257 x 590 x 570 | 189.2 / 86 | VTWP-10000-02 | 10000VA • 9000W | Hardwire Terminals | 48A | 6-Position Terminal Blocks, 57A, Bolt Size: M5 | 10.3 x 25.3 x 23 / 257.4 x 643 x 585 | 211 / 96 |
×
Battery Specifications
| Model | Battery Type & Rating | Internal Battery Cartridge | Internal Battery Cartridge Quantity |
|---|---|---|---|
| VTWP-1000-02 | Sealed, lead acid 7.2Ah/12V (36W) | VTBC-1000-36 | 3 |
| VTWP-1500-02 | Sealed, lead acid 9Ah/12V (45W) | VTBC-1500-48 | 4 |
| VTWP-2000-02 | Sealed, lead acid 7.2Ah/12V (36W) | VTBC-1000-36 | 6 |
| VTWP-3000-02 | Sealed, lead acid 9Ah/12V (45W) | VTBC-1500-48 | 8 |
| VTWP-6000-02 | Sealed, lead acid 7.2Ah/12V (36W) | VTBC-1000-36 | 20 |
| VTWP-10000-02 | Sealed, lead acid 9Ah/12V (45W) | VTBC-1500-48 | 20 |
